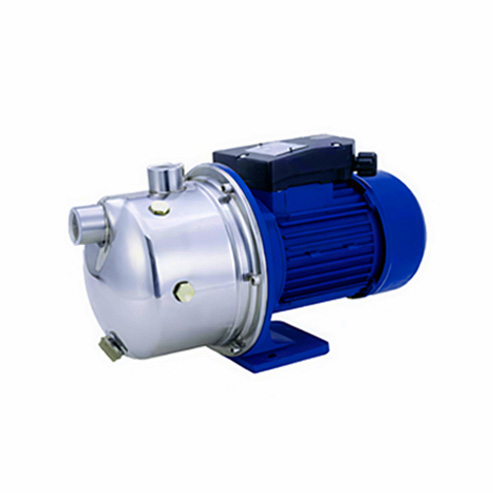

Yimai self-priming pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components. They are extremely reliable, economical and simple to use. Being particularly suitable for domestic applications medium-sized surge tanks, watering gardens, etc. These self-priming centrifugal pumps should be installed in a covered area, protected against the weather.N.B.it is always advisable to install a foot valve or non-return valve on the suction opening.
Click below for free catalogue or Inquiry
Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft, with thermal protector inside. Other model and material of self-priming pump such as three phase, 110V, 60Hz, dual voltage, stainless shaft, etc, will be available upon request.
| Technical data | |
| Pump body | Cast iron, complete with threaded parts in compliance with IS0228/1 |
| Max flow rate | 80L/min(4.8m³/h) |
| Max head | 48m |
| Fluid temperature | 60℃ |
| Maximum ambient temperature | 40℃ |
| Motor bracket | Stainless stand AISI304 |
| Nozzle assembly | Nory1 FE1520PW |
| Impeller | Stainless steel AISI 304 |
| Motor shaft | Stainless steel EN 10088-3-1.14104 |
| Bearings | 6203 zz/6203 zz |
