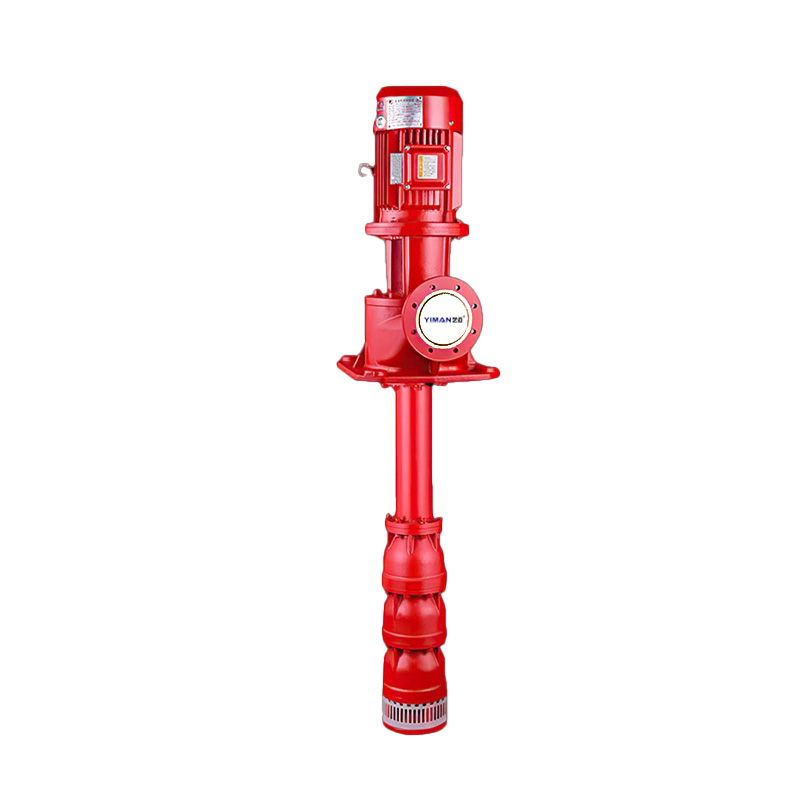

Vertical turbine pump consists of a plurality of centrifugal impeller and guide housing, lifting pipe, transmission shaft, pump seat, motor and other components.
Click below for free catalogue or Inquiry
The pump seat and the motor are located above the pool, and the power of the motor is transmitted to the blade shaft through a concentric transmission shaft with the lifting pipe, to generate flow and pressure. This type pump can be coupled with power from motor and diesel engine according to customer applications.
| Technical data | |
| Model | YM-VTP |
| Pump casing material | Cast Iron |
| Impeller material | Cast Iron/SS304/SS316L or others upon request |
| Frequency | 50Hz/60Hz |
| Seal type | Mechanical seal/Gland packing seal |
| Flow rate range | 20-50000 m³/h |
| Head range | 3-300meters |
| Media temperature | -20-60℃ |
| Application fields | Mainly used in industrial and mining enterprises, engineering construction, high-rise buildings and other fixed fire extinguishing system fire hydrant fire, automatic spray fire extinguishing system, also can be used for living, production and shared water supply system and building, municipal water supply and drainage. |
