Split Casing Double Suction Pump: High-Efficiency Fluid Handling for Demanding Industrial Applications
Traditional single-suction pumps in high-flow applications like municipal water supply and industrial cooling suffer from low efficiency (≤80%), excessive axial force (bearing lifespan <2 years), and time-consuming maintenance (>8 hours per repair). The Yimai split casing double suction pump addresses these challenges with symmetrical double-suction impellers, split-case housing, and high-strength ductile iron—boosting efficiency to 92%, extending bearing life to 5 years, and cutting maintenance time of double suction pump to 2 hours, redefining reliability for large-scale fluid handling.
In a Wuhan municipal water plant, legacy pumps consumed $220,000 annually in electricity, with 12 days of annual downtime. After switching to the Yimai double suction pump in 2023, energy use dropped by 25%, saving $55,000 yearly. The split casing enabled rapid disassembly, while self-balancing seals reduced leakage to 0.01%. Supply stability of split casing pump improved by 40%, annual maintenance saved $38,000, and emergency response efficiency doubled.

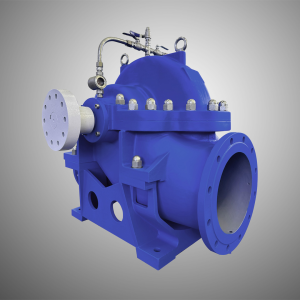

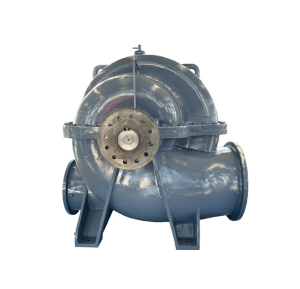

Yimai YMS series split casing double suction pump, is designed according to the market needs, on the basis of extensive absorption of similar products advanced technology, self-developed in the open double suction pump new products, its remarkable features are: perfect type, excellent model, novel structure, easy maintenance. The max flow rate of double suction pump is 3975m³/h, max head is 230m and we have two types of seal, mechanical seal and gland packing seal. Pump casing material can be cast iron or ductile iron, impeller material can be cast iron, ZCuSn10Zn2 and ZCuZn16Si4. What’s more, shaft materials of split casing pump are 2Cr13, 3Cr13 and 40Cr.
Whether for industrial water supply systems, HVAC cycles, water treatment plants, or power stations, the split casing double suction pump provides exceptional cost efficiency and operational reliability. Contact us, let’s unlock the future of fluid technology!
Keywords:
split casing double suction pump
